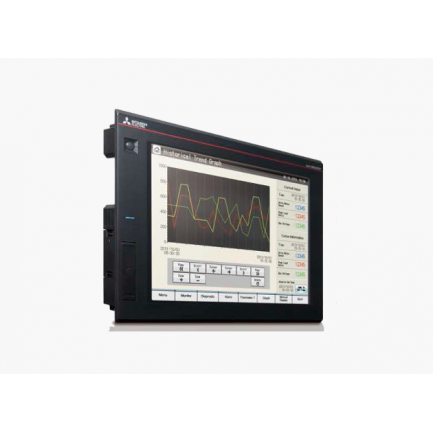

GT27 Модельный ряд
| КАТЕГОРИЯ | НОМЕР МОДЕЛИ | РАЗМЕР ЭКРАНА | РАЗРЕШЕНИЕ | ДИСПЛЕЙ | ЦВЕТ КОРПУСА | НАПРЯЖЕНИЕ ПИТАНИЯ |
| GT2715 | GT2715-XTBA | 15" | XGA (1024 x 768) | TFT Color | Black | 100-240VAC |
| GT2715-XTBD | 24VDC | |||||
| GT2712 | GT2712-STBA | 12.1" | SVGA (800 x 600) | Black | 100-240VAC | |
| GT2712-STBD | 24VDC | |||||
| GT2712-STWA | White | 100-240VAC | ||||
| GT2712-STWD | 24VDC | |||||
| GT2710 | GT2710-STBA | 10.4" | SVGA (800 x 600) | Black | 100-240VAC | |
| GT2710-STBD | 24VDC | |||||
| GT2710-VTBA | VGA (640 x 480) | 100-240VAC | ||||
| GT2710-VTBD | 24VDC | |||||
| GT2710-VTWA | White | 100-240VAC | ||||
| GT2710-VTWD | 24VDC | |||||
| GT2708 | GT2708-STBA | 8.4" | SVGA (800 x 600) | Black | 100-240VAC | |
| GT2708-STBD | 24VDC | |||||
| GT2708-VTBA | VGA (640 x 480) | 100-240VAC | ||||
| GT2708-VTBD | 24VDC | |||||
| GT2705 | GT2705-VTBD | 5.7" | VGA (640 x 480) | 24VDC |
GT27 основные характеристики
| ХАРАКТЕРИСТИКА | ЗНАЧЕНИЯ | |||||
| Рабочая температура | 0 to 55° | |||||
| Температура хранения | -20 to 60° | |||||
| Влажность окружающего воздуха | 10 to 90%RH, non-condensing (The wet bulb temperature is 39°) When the ambient temperature exceeds 40°, maintain the absolute humidity at 40° and 90% | |||||
| Вибростойкость | Conforms to IEC 61131-2 | Frequency | Acceleration | Half-Amplitude | Sweep Count | |
| Under intermittent vibration | 5 to 8.4Hz | - | 3.5mm | 10 times each in X, Y and Z directions | ||
| 8.4 to 150Hz | 9.8m/s² | - | ||||
| Under continuousvibration | 5 to 8.4Hz | - | 1.75mm | - | ||
| 8.4 to 150Hz | 4.9m/s² | - | ||||
| Ударопрочность | Conforms to IEC 61131-2 (147m/s², 3 times each in the X, Y, and Z directions) | |||||
| Высота на уровнем моря | 2000m or less | |||||
| Категория перегрузки по напряжению | II or less | |||||
| Степень загрязнения | 2 or less | |||||
| Способ охлаждения | Self-cooling | |||||
| Заземление | Type D grounding (100Ω or less). Connect to panel if unable to ground. | |||||
GT27 Характеристики электропитания
| НОМЕР МОДЕЛИ | GT2715- XTBA | GT2712- STBA GT2712- STWA | GT2710- STBA GT2710- VTBA GT2710- VTWA | GT2708- STBA GT2708- VTBA | GT2715- XTBD | GT2712- STBD GT2712- STWD | GT2710- STBD GT2710- VTBD GT2710- VTWD | GT2708- STBD GT2708- VTBD
| GT2705- VTBD | |
| Напряжение питания | 100 to 240VAC (+10%, -15%) | 24VDC (+25%, -20%) | ||||||||
| Частота питающей сети | 50/60Hz ±5% | - | - | |||||||
| Потребляемая мощность | Максимально | 51W or less | 44W or less | 41W or less | 41W or less | 48W or less | 45W or less | 42W or less | 39W or less | 30W or less |
| Режим ожидания | 25W | 19W | 17W | 15W | 23W | 15W | 15W | 13W | 7W | |
| С выключенной подсветкой | 10W | 10W | 10W | 10W | 8W | 8W | 8W | 8W | 5W | |
| Ток заряда | 40A or less (3ms, ambient temperature 25°C, maximum load) | 60A or less (2ms, ambient temperature 25°C, maximum load) | 5A or less (20ms, ambient temperature 25°C, maximum load) | 69A or less | ||||||
| Допустимое время сбоя питания | Within 20ms (100VAC or more) | Within 10ms | (1 ms, ambient temperature: 25°C, under the maximum load) | |||||||
| Помехоустойчивость | Noise voltage 1500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz | Noise voltage 500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz | ||||||||
| Выдерживаемое напряжение | 1500VAC for 1 minute between power supply terminal and ground | 350VAC for 1 minute between power supply terminal and ground | ||||||||
| Сопротивление изоляции | 10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground) | |||||||||
| Размер проводов подключения | 0.75 to 2 [mm²] | |||||||||
| Клеммник | Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A | |||||||||
